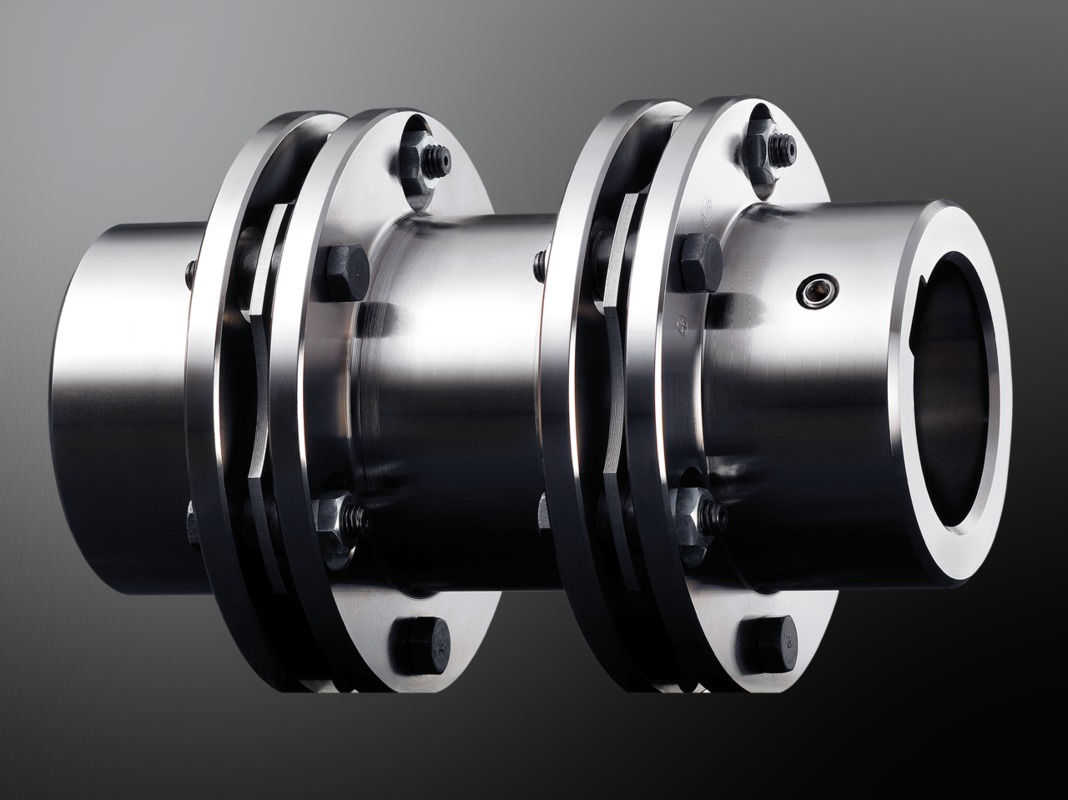

Radex-N Series

The heart of the RADEX-N steel laminae system are the laminae and their connection to hubs and spacers. The special dowel screws that join are reciprocally screwed on hubs and spacer allowing friction and a positive-locking fit. In this way, the laminae coupling ensures high discharge of power and easy displacement. The Radex-N Series is available in Spacer type, short design type and can be manufactured according API 610 standard.


Features:

  • All Steel construction
  • Maintenance Free
  • Torsionally Stiff and Backlash free
  • Rated upto 280,000 NM of Torque
  • Single and Double cardanic design

company img

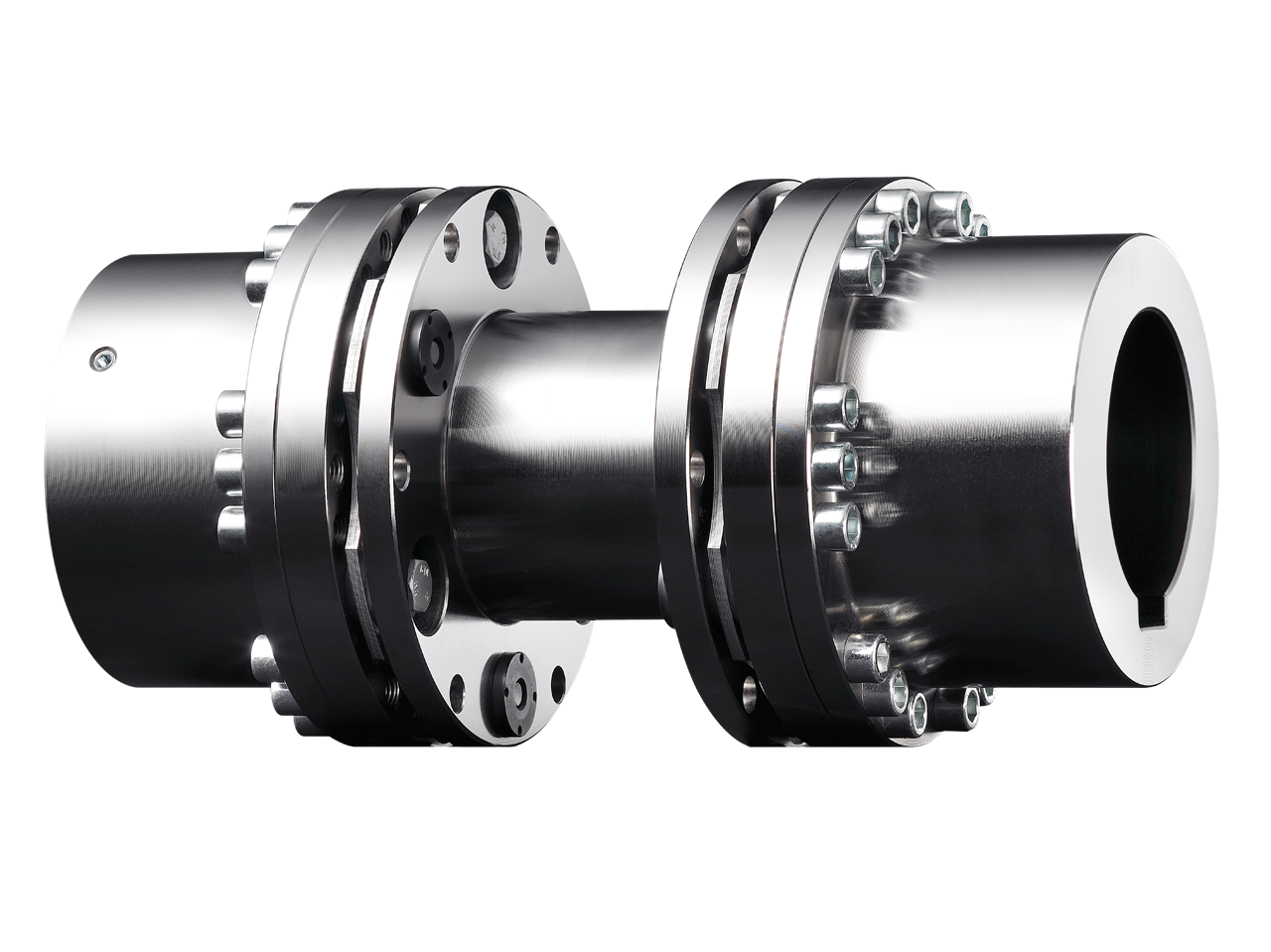

Rigiflex-N Series

The RIGIFLEX -N steel laminae couplings are used in applications where fast and quiet, backlash-free transmission of torque with simultaneous shaft displacement is required. They are connected fully backlash-free with hubs and flanged fasteners using positive-locking dowel screws. Rigiflex series is also available in half shell design.


Features:

  • All Steel construction
  • Maintenance Free
  • Torsionally Stiff and Backlash free
  • Rated upto 280,000 NM of Torque
  • Double cardanic design

company img

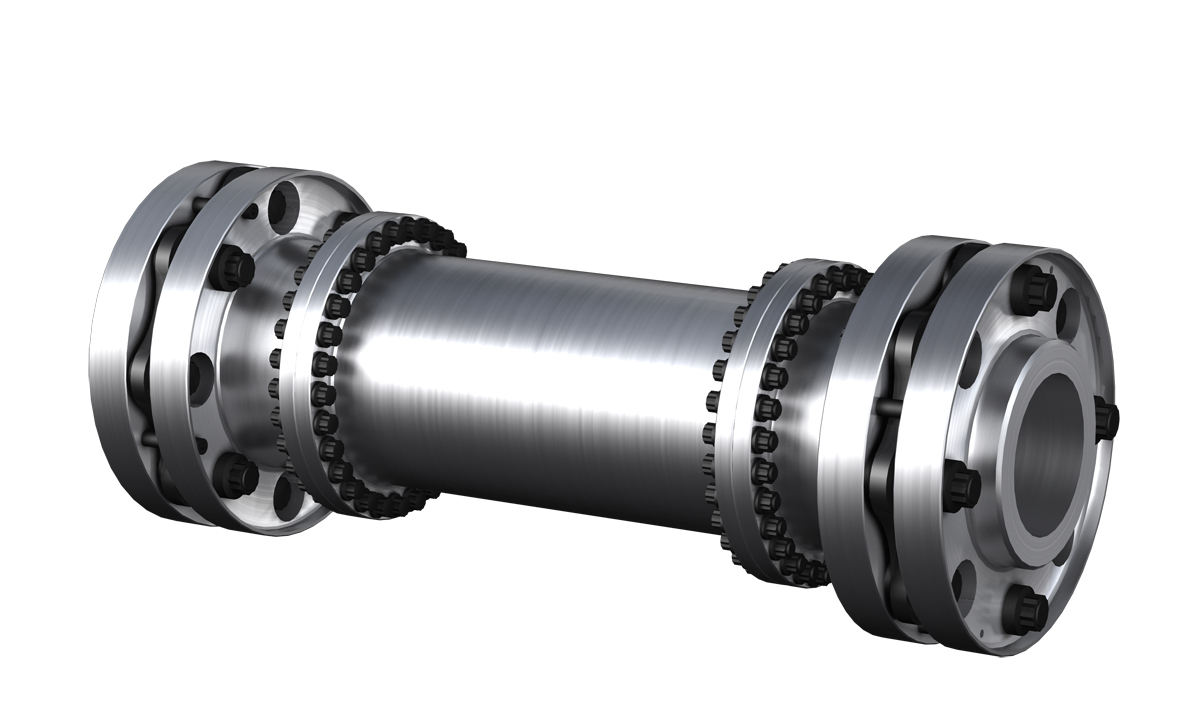

Rigiflex-HP Series

The RIGIFLEX-HP steel lamination couplings are used for a high-speed drive with a circumferential speed of up to 200 m/s. With its special properties, this coupling type is very effective in avoiding jerking even at the highest speed. It also has a lightweight, highly optimized design.


Features:

  • All Steel construction
  • Maintenance Free
  • Torsionally Stiff and Backlash free
  • Rated upto 330,000 NM of Torque
  • Double cardanic design
