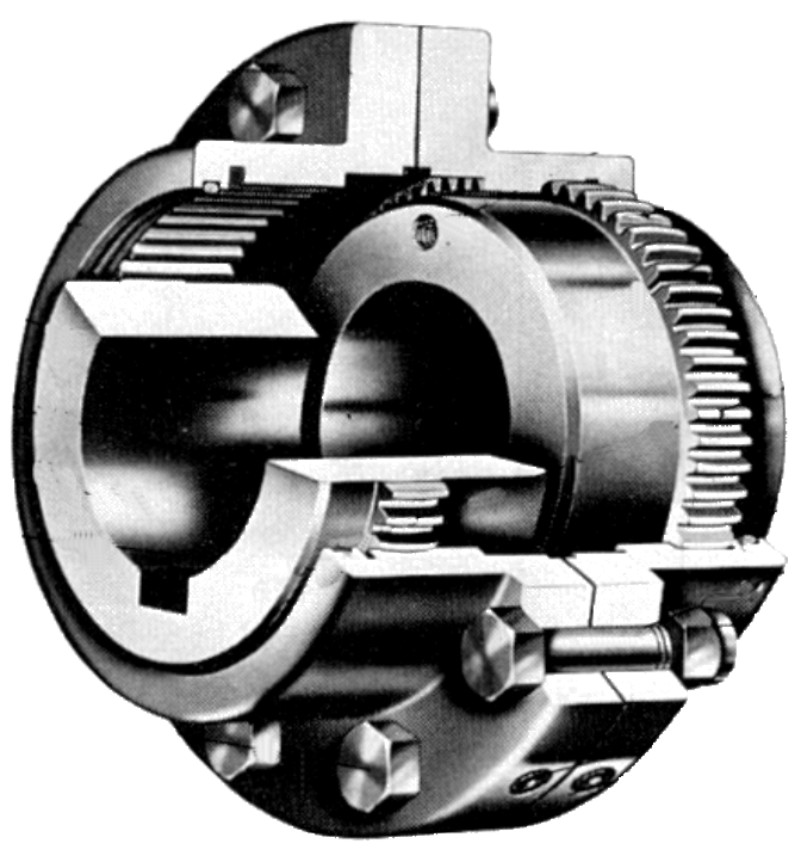

LFG/LHG Series

A gear coupling is a type of coupling that is often used with high torque or high-power output. Gear couplings are typically able to withstand more torque than universal joints, whereas universal joints produce less vibration. A gear coupling is made up of a two-part hub with internal and external teeth and an external or internal sleeve.


Features:

  • Minimum backlash
  • High bore capacity (Upto 710mm)
  • High power to weight ratio
  • Accommodates Parallel, Angular and Axial Misalignment
  • Can be used up to 120 degrees Celsius. It can be used in even high temperatures if proper oil and lubrication is used.

company img

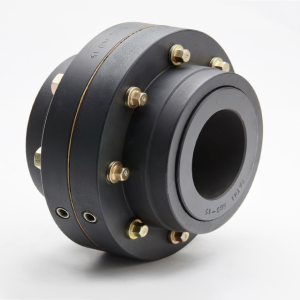

RGD/RGS/RGF Series

A gear coupling is a type of coupling that is often used with high torque or high-power output. Gear couplings are typically able to withstand more torque than universal joints, whereas universal joints produce less vibration. A gear coupling is made up of a two-part hub with internal and external teeth and an external or internal sleeve.


Features:

  • Conforms to AGMA Standard
  • RGD / RGS are interchangeable
  • High Misalignment capabilities
  • Better fastener design
  • High Torque rating

company img

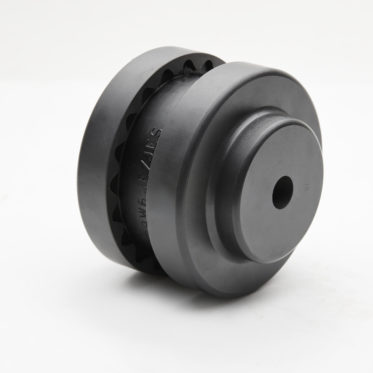

RBW Series

Sleeve-Flex assembly can be done quickly and efficiently, since there are no bolts, gaskets, covers, or seals. Alignments can be checked with a straight edge placed on the outside of precision-machined flanges. The teeth of the sleeve lock into the teeth of the flanges without screws or clamps, tightening under torque to provide smooth transmission of energy.


Features:

  • No Lubrication required
  • No Maintenance required
  • Easy Installation
  • Not affected by abrasives, dirt or moisture.
  • Quiet Performance

company img

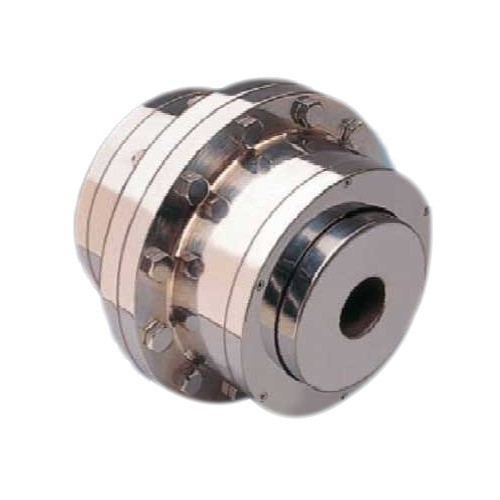

FGC Series

Gear couplings are characterized by their mechanical flexibility and compensation for angular, parallel, and axial misalignments of the connected shafts. Flexible Gear Couplings consist of two hubs, with crowned external teeth and two internal sleeves with crowned spur teeth.


Features:

  • High Mechanical Flexibility- Crowned and Curved Tooth profile
  • Excellent power carrying capacity
  • Materials are made with carbon steel or cast hubs with hardened teeth
  • Torque: 1100 – 14,70,000 Nm
  • Bore Capacity is 710mm.
